Ball end of selector shaft - oil seal 15 x 24 x 7
Maintenance 4 cylinder cars
- Check the ball end every year
- Check the oil seal 15 x 24 x 7 for leakage
- Remove dirt of the ball end and the link rod
- Lubricate the selector shaft lightly with grease
Ball end and oil seal replacement
When the ball end have worn out, the space becomes too large. It is also possible that the ball end has become obsolete and is no longer fixed on the selector shaft. Then the ball end must be replaced.
My recommendation is to replace simultaneously also the oil seal when the ball end is renewed. In the event that only the oil seal must be replaced, the ball end must be also removed and renewed again.
Remove the ball end of the selector shaft using a saw and a grip, and clean the end of the selector shaft. With a sharp chisel and a screwdriver you can remove the oil seal. Clean the housing of the oil seal. Assemble the new oil seal 15 x 24 x 7 mm carefully.
Place the tapered tool on the selector shaft and push or hammer the ball, using a pipe or pipe key 10x11, into the selector shaft. The ball end sit normally well clenched.
Heat the ball end and the tapered tool in warm water (90 degrees Celsius) for a while. Because of this the ball end will be assembled smoothly and easily.
FRONT ENGINE RUBBER 4-CYLINDER
If the front engine rubber of the 4-cylinder engine is worn, it results that the engine is hanging down, the ball end grips under the link rod. Changing gear is not or partially possible.

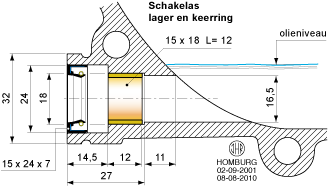

Selectorshaft bearing construction
Selector shaft
4 cylinder: selector shaft (and ball end) indicates up.
2 cylinder: selector shaft (and ball end) indicates down, see photograph left.
